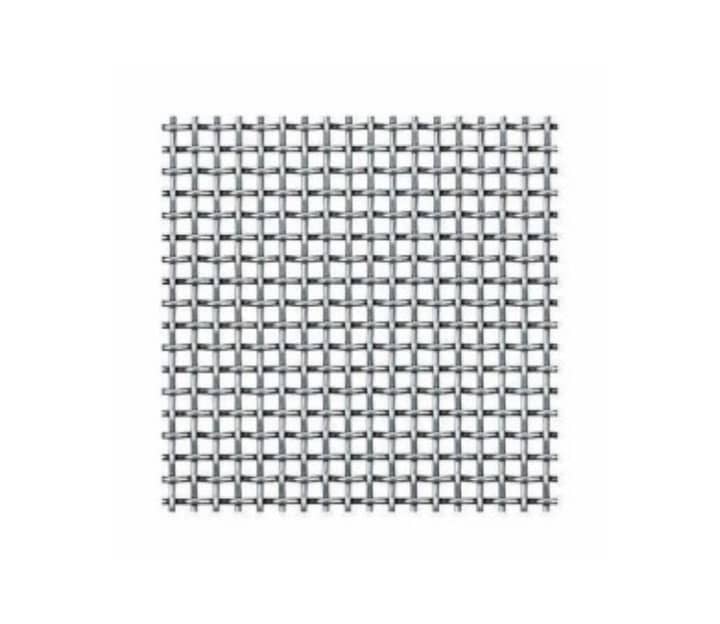

Reliable Square Wire Mesh Manufacturer, Supplier & Exporter | Stainless Steel Ss 304 & Ss 316 Grade | Timex Metals

Reliable Square Wire Mesh Manufacturer, Supplier & Exporter | Stainless Steel Ss 304 & Ss 316 Grade | Timex Metals
Specification Details
StandardAstm A580, A313, A555, A493 / Asme Sa580, Sa313, Sa555, Sa493, Ams 5514
Length0.125", 72
Diameter10 Microns 1.0 Mm, 0.0004" To 0.040"
TechniqueCold Rolled, Hot Rolled

Square Wire Mesh Supplier in Kuwait serving oil gas petrochemical construction mining and heavy engineering industries

Timex Metals is a reputable Square Wire Mesh Supplier In Kuwait, which offers top-grade screening and filtration systems designed to be used in industries and business. Square wire mesh is woven down to a uniform pattern with the wires in specific perpendicular arrangements thus producing uniform holes that guarantee dependable strength and durability as well as uniform performance. This mesh is famous in its structural stability and versatility and is commonly used in areas when strict separation, reinforcing and protective cover is needed.

Square wire mesh is used in construction, mining, agricultural and food processing, chemical handling and architecture. Its moderate strength-to-weight property and versatility qualifies it to be applied in the screening of materials, protective barriers, ventilation systems, and reinforcement structures. It comes in various wire diameter, mesh areas, and grade of material used and it can be used in both a standard installation and operational needs that can be tailored to fit the needs of the organization with long-term reliability.

Square Wire Mesh – Material & Grade Table

Common MaterialStandardGrade / TypeMaterial FamilyTypical UseKey Properties
Stainless SteelASTM A580SS 304Austenitic SSFiltrationCorrosion resistance
Stainless SteelASTM A580SS 316Austenitic SSMarine/chemicalPitting resistance
Stainless SteelASTM A580SS 316LAustenitic SSFood/medicalLow carbon stability
Galvanized SteelASTM A641GI WireCarbon SteelFencingRust protection
Mild SteelASTM A510MS WireCarbon SteelIndustrial screeningHigh strength
AluminumASTM B211Alloy 1100Non-FerrousLightweight screeningCorrosion resistance
CopperASTM B152C11000Non-FerrousDecorative/electricalConductivity
Being a reliable Square Wire Mesh Supplier In Kuwait, materials are availed using a professional B2b Portal that eases the sourcing and procurement functions worldwide. All mesh products are checked to have dimensional accuracy, weave uniformity, and mechanical strength as a quality control measure. By using an established B2B Portal, buyers can acquire reliable industrial mesh solutions through efficient methods and at a level of assurance.

Square Wire Mesh – Sizes & Availability Table

Mesh TypeMesh Size (Opening)Wire DiameterWidthStandardMinimum Quantity
Fine SS Mesh2–10 mm0.3–1 mm1 mASTM2000 Pcs
Medium SS Mesh10–25 mm0.5–2 mm1–1.5 mASTM2000 Pcs
Heavy SS Mesh25–50 mm1–3 mm1–2 mASTM2000 Pcs
GI Square Mesh10–50 mm0.8–3 mm1–2 mASTM2000 Pcs
MS Square Mesh12–75 mm1–4 mm1–2 mASTM2000 Pcs
Aluminum Mesh5–30 mm0.5–2 mm1–1.5 mASTM2000 Pcs
Copper Mesh2–20 mm0.3–1.5 mm1 mASTM2000 Pcs

Key Features & Advantages

  • Uniform square openings for consistent screening
  • Accurate mesh dimensions and stable construction
  • Available in fine, medium, and coarse configurations
  • Good tensile strength and dimensional stability
  • Excellent corrosion resistance with suitable stainless steel grades
  • Suitable for filtration, sieving, screening, and protection
  • Available in customized materials, wire diameters, and dimensions

Chemical Composition

Representative Grade: Stainless Steel 304

ElementPercentage (%)
Chromium (Cr)18.0–20.0
Nickel (Ni)8.0–10.5
Manganese (Mn)2.00 max.
Carbon (C)0.080 max.
Silicon (Si)1.00 max.
Iron (Fe)Balance

Mechanical Properties

PropertyValue
Tensile Strength515 MPa min.
Yield Strength205 MPa min.
Elongation40% min.
Hardness92 HRB max.

Equivalent Grade

StandardGrade
ASTM304
UNSS30400
EN1.4301
DINX5CrNi18-10



Type of Sub-products

Frequently Asked Questions

What are Square Wire Mesh used for?

What materials are used to manufacture Square Wire Mesh?

Where is Square Wire Mesh commonly used?

Which specifications are available for Square Wire Mesh?

How can I select suitable Square Wire Mesh?

Can Timex Metals customize Square Wire Mesh?

Is there any minimum order quantity?
