Weld Ring Gaskets Manufacturer In India – Precision Engineered Metal Ring Gaskets

Name: Weld Ring Gaskets Manufacturer In India – Precision Engineered Metal Ring Gaskets
Brand: Gascoinc
Availability: InStock
Rating: 5 (13 reviews)

Specification Details
Sizes	1/2 Nb, 24 Nb
Gasket Standards	Asme B16.20 Gaskets, Asme B16.21 Gaskets
Outside Diameter	Nps 1⁄2 Through Nps 8 Is ±0.8 Mm; For Nps 10 Through Nps 24, +1.5 Mm, −0.8 Mm.
Inside Diameter	Nps 1⁄2 Through Nps 8 Is ±0.4 Mm; For Nps 10 Through Nps 24, ±0.8 Mm.

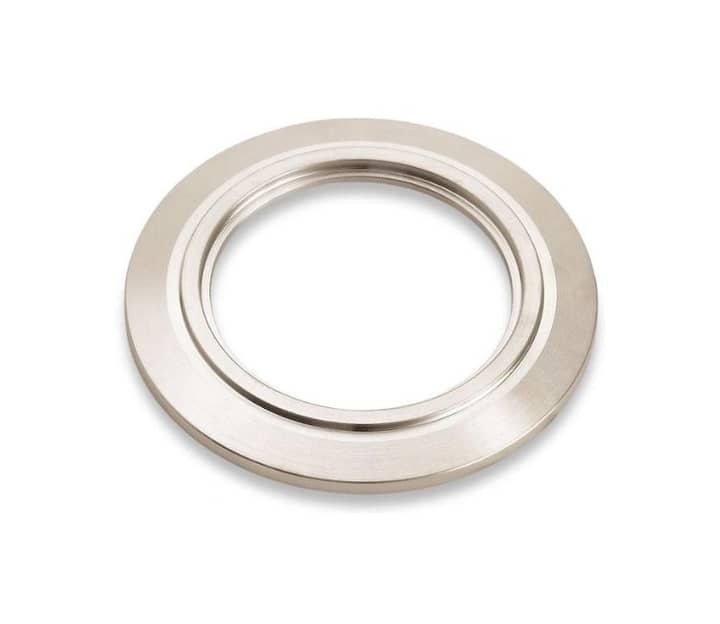

Weld Ring Gaskets

Gasco Inc. is a trusted Weld Ring Gaskets manufacturer that offers high-performance, reliable, and secure sealing products in high-pressure, high-temperature, and critical pipeline applications. These gaskets are designed to establish a permanent metallic-metallic closeness so that there is complete leak closure even within the harshest functioning conditions. They have a high application in refineries, petrochemical facilities, power plants, and high-integrity piping systems whose reliability, strength, and service life are critical. We also provide expanded PTFE sheet gaskets that are characterised by high chemical resistance and variability for a variety of sealing purposes.

Our gasket solutions are offered in a variety of sizes, material grades, and custom configurations and distributed with the help of a reliable B2B industry network, which ensures consistency of quality and delivery on time. All the products are thoroughly subjected to quality inspections in order to guarantee an excellent sealing performance, thermal cycling, and durability. Weld ring gaskets have a high rate of structural integrity and sealing, which makes them beneficial in making industries achieve operational safety, better efficiency of systems, and minimisation of the downtime of their systems in the face of demanding industrial environments.

Weld Ring Gaskets – Standard Weight Chart

The following table provides indicative theoretical weights for Weld Ring Gaskets based on common nominal pipe sizes and standard dimensions.

Nominal Size (NB)	Outer Diameter (OD) (mm)	Inner Diameter (ID) (mm)	Thickness (mm)	Weight Per Piece (Kg)	Approx. Weight (10 Nos) (Kg)
½" (15 NB)	40	21	3	0.05	0.50
¾" (20 NB)	45	27	3	0.07	0.70
1" (25 NB)	52	34	3	0.10	1.00
1½" (40 NB)	65	48	3	0.15	1.50
2" (50 NB)	78	60	3	0.22	2.20
3" (80 NB)	110	89	4	0.45	4.50
4" (100 NB)	135	114	4	0.70	7.00
6" (150 NB)	190	168	5	1.50	15.00
8" (200 NB)	245	219	6	2.80	28.00
10" (250 NB)	300	273	6	4.20	42.00
12" (300 NB)	355	324	6	5.80	58.00
