Wire Mesh is an industrial product manufactured using various materials such as stainless steel, mild steel, galvanized steel, and carbon steel. It is commonly used in screening, filtration, separation, fencing, and industrial applications.

Renowned Wire Mesh Manufacturer & Supplier | Stainless Steel Ss 304 & Ss 316 Grade | Metaface India

Name: Renowned Wire Mesh Manufacturer & Supplier | Stainless Steel Ss 304 & Ss 316 Grade | Metaface India
Brand: Metaface India
Availability: InStock
Rating: 5 (5 reviews)

Specification Details
Standard	Astm A580, A313, A555, A493 / Asme Sa580, Sa313, Sa555, Sa493, Ams 5514
Length	0.125", 72
Diameter	0.0004" To 0.040", 10 Microns 1.0 Mm
Technique	Cold Rolled, Hot Rolled

Top Quality Wire Mesh Manufacturer in India

Metaface India is a leading Wire Mesh Manufacturer in India, renowned for delivering superior quality wire mesh solutions for a wide range of industrial applications. As a trusted name in the industry, we specialize in manufacturing durable and precision-engineered products, including stainless steel wire mesh and welded wire mesh. Our wire mesh is corrosion-resistant, high in strength, and suitable for various demanding environments. With years of expertise and a commitment to excellence, we have earned a reputation for reliability and consistency across the nation. We also specialize in Copper Wire Mesh, ideal for architectural design, decorative panels, and security enclosures.

We are also a top Wire Mesh Supplier in India, offering premium solutions tailored to meet specific client requirements. Backed by a state-of-the-art manufacturing facility and stringent quality control processes, our wire mesh meets international standards. We serve industries such as construction, filtration, agriculture, and automotive, providing customized solutions that ensure optimal performance and durability. Contact us today to discover how our advanced wire mesh products can support your project needs.

Material & Grades Table – Wire Mesh

Material	Grade / Standard	Wire Diameter / Opening (mm)	Extra Specification	Weight (kg/m²)
Stainless Steel	SS 304 / ASTM A580	0.20 – 5.00 / 0.10 – 50	Woven / Welded Mesh	0.50 – 25.00
Stainless Steel	SS 316 / ASTM A580	0.20 – 5.00 / 0.10 – 50	Corrosion Resistant	0.50 – 25.00
Carbon Steel	ASTM A510	0.50 – 6.00 / 5 – 100	Woven / Welded Mesh	1.00 – 30.00
Galvanized Steel	ASTM A641	0.50 – 5.00 / 5 – 100	Galvanized Finish	1.00 – 28.00
Duplex Steel	UNS S32205	0.50 – 4.00 / 1 – 50	High Corrosion Resistance	1.00 – 22.00
Nickel Alloy	Inconel 600 / 625	0.20 – 3.00 / 0.10 – 25	High Temperature Service	0.80 – 18.00
Copper Base Alloys	Brass / Phosphor Bronze	0.20 – 3.00 / 0.10 – 30	Electrical / Decorative	0.60 – 20.00
High-Temp Alloys	Hastelloy C276	0.20 – 3.00 / 0.10 – 25	Chemical Processing	0.80 – 18.00

Key Features & Advantages

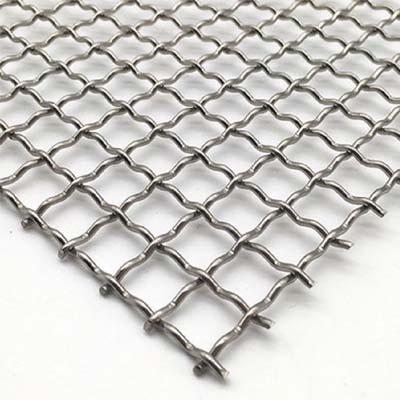

Available in woven, welded, and crimped configurations

Uniform openings for consistent screening and filtration

Wide range of mesh counts and wire diameters

High mechanical strength and dimensional stability

Excellent corrosion resistance with suitable material grades

Suitable for industrial, commercial, and construction applications

Customizable materials, dimensions, openings, and configurations

Chemical Composition

Representative Grade: Stainless Steel 304

Element Percentage (%)
Chromium (Cr) 18.0–20.0
Nickel (Ni) 8.0–10.5
Manganese (Mn) 2.00 max.
Carbon (C) 0.080 max.
Silicon (Si) 1.00 max.
Iron (Fe) Balance

Element	Percentage (%)
Chromium (Cr)	18.0–20.0
Nickel (Ni)	8.0–10.5
Manganese (Mn)	2.00 max.
Carbon (C)	0.080 max.
Silicon (Si)	1.00 max.
Iron (Fe)	Balance

Mechanical Properties

Property Value
Tensile Strength 515 MPa min.
Yield Strength 205 MPa min.
Elongation 40% min.
Hardness 92 HRB max.

Property	Value
Tensile Strength	515 MPa min.
Yield Strength	205 MPa min.
Elongation	40% min.
Hardness	92 HRB max.

Equivalent Grade

Standard Grade
ASTM 304
UNS S30400
EN 1.4301
DIN X5CrNi18-10

Standard	Grade
ASTM	304
UNS	S30400
EN	1.4301
DIN	X5CrNi18-10

Type of Sub-products

Frequently Asked Questions

What is Wire Mesh?

What materials are used to manufacture Wire Mesh?

What are the applications of Wire Mesh?

Which specifications are available for Wire Mesh?

How can I select suitable Wire Mesh?

Does Metaface India provide custom manufacturing?

What is the MOQ for Wire Mesh?
