Reliable Carbon Steel Wire Mesh Manufacturer & Supplier | Ss 304 | Bhansali Wire Mesh
| Standard | Astm A580, A493 / Asme Sa580, A313, A555, Sa313, Sa555, Sa493, Ams 5514 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |

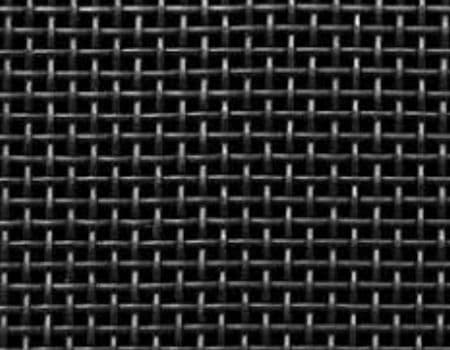

Carbon Steel Wire Mesh Customizable Industrial-Grade Corrosion-Resistant Filtration for Construction and Chemical Industries Supplier in India
Bhansali Wire Mesh is a reliable Carbon Steel Wire Mesh Manufacturer that deals in high-quality mesh products for industrial, construction, and filtration purposes. Our carbon steel mesh is a high-quality steel, which has outstanding strength, life span, and corrosion ability to withstand severe conditions. This product comes in a variety of wire sizes and mesh sizes and provides better screening, sieving, fencing, and reinforcement capabilities. The mesh is strictly woven and tested to conform to the international quality standards, and it makes it an excellent selection in the engineering and architectural projects that come with high demands.
Our superior B2B platform will allow industries to source and customise Carbon Steel Wire Mesh products to their operational requirements with ease. Super Duplex Steel Wire Mesh is one of our sub-products that is a popular product that is used in the mining, quarrying, and coal processing industries. Besides Monel Wire Mesh that can be used in filtration, chemical, heat exchanger, and industrial screening use, we also have the Decorative Mesh and the Perforated Mesh that can be used to suit various industrial and commercial needs. These meshes have an interlocked crimping design, and this gives it rigidity, high wear resistance, and long life, and they can be subjected to strenuous screening and separation requirements. Our mesh solutions are not only multi-purpose but also high efficiency and consistent in their functionality, which means that a business can be not only cost-effective but also efficient in its performance.
Carbon Steel Wire Mesh – Standard Grade Weight Chart
| Mesh Size (mm) | Wire Diameter (mm) | Weight per m² (kg) | Total Weight per 10 m² (kg) |
|---|---|---|---|
| 1 × 1 | 0.50 | 3.5 | 35 |
| 2 × 2 | 0.60 | 4.2 | 42 |
| 3 × 3 | 0.80 | 5.8 | 58 |
| 4 × 4 | 1.00 | 7.5 | 75 |
| 5 × 5 | 1.20 | 9.2 | 92 |
| 6 × 6 | 1.50 | 11.8 | 118 |
The use of Carbon Steel Wire Mesh in construction, industrial filtration, screening and protective purposes is very common because of its strength, durability and cost efficiency. The weight graph is used to give precise data to the engineers and procurement staff to choose the correct mesh size and wire diameter to be used in particular applications. The information about the weight per square meter and weight in general could be utilized in the planning of the materials and the organization of the transportation and provide the efficient work of the installation in the case of large-scale projects.
Carbon Steel Wire Mesh Client Project Report
| Product Supplied | Quantity | Cities (India) |
|---|---|---|
| Carbon Steel Wire Mesh for Filtration | 250 Meters | Pune |
| Carbon Steel Wire Mesh for Chemical Industry | 200 Meters | Bangalore |
| Carbon Steel Wire Mesh for Heat Exchangers | 180 Meters | Chennai |
| Carbon Steel Wire Mesh for Industrial Screening | 220 Meters | Ahmedabad |
Key Features & Advantages
- High mechanical strength for industrial applications
- Good resistance to impact and mechanical loads
- Available in woven and welded constructions
- Suitable for coarse and fine screening requirements
- Good dimensional stability and structural rigidity
- Galvanized options provide enhanced corrosion protection
- Available in customized mesh openings, wire diameters, and dimensions
Chemical Composition
Representative Grade: SAE 1045 Medium Carbon Steel
| Element | Percentage (%) |
| Carbon (C) | 0.43–0.50 |
| Manganese (Mn) | 0.60–0.90 |
| Silicon (Si) | 0.15–0.35 |
| Phosphorus (P) | 0.040 max |
| Sulfur (S) | 0.050 max |
| Iron (Fe) | Balance |
Mechanical Properties
| Property | Value |
| Tensile Strength | Approx. 570–700 MPa |
| Yield Strength | Approx. 300–400 MPa |
| Elongation | Approx. 12–20% |
| Hardness | Approx. 170–220 HB |
Equivalent Grade
| Standard | Grade |
| ASTM | AISI 1045 |
| UNS | G10450 |
| EN | C45E |
| DIN | C45 |
Type of Sub-products
Frequently Asked Questions
Which material should I choose for Carbon Steel Wire Mesh?
Where is Carbon Steel Wire Mesh commonly used?
Which standards are available for Carbon Steel Wire Mesh?
How can I select suitable Carbon Steel Wire Mesh?
Can Bhansali Wire Mesh customize Carbon Steel Wire Mesh?
How can I get a quotation?
