Superior Super Duplex Steel Wire Mesh Manufacturer & Supplier | Uns S32750 & S32760 Grade | Rajkrupa Metal Industries
| Standard | Astm A580, A313, A555, A493 / Asme Sa580, Sa313, Sa555, Sa493, Ams 5514 |
|---|---|
| Length | 0.125", 72 |
| Diameter | 10 Microns 1.0 Mm, 0.0004" To 0.040" |
| Technique | Cold Rolled, Hot Rolled |
Super Duplex Steel Wire Mesh

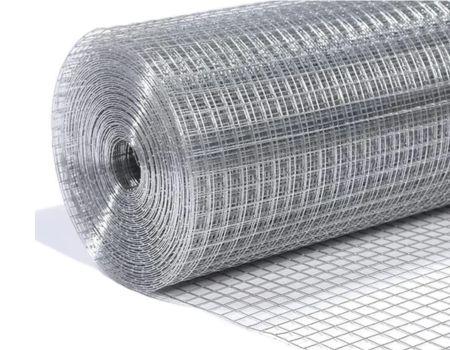

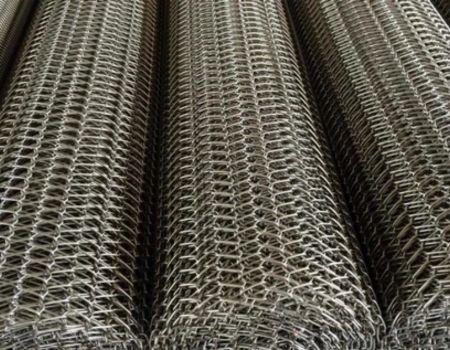

Rajkrupa Metal Industries promotes its specialty alloy mesh line as a Super Duplex Steel Wire Mesh manufacturer providing the mesh which is constructed under the extreme industrial conditions.These meshes are made of grades such as UNS S32750 and S32760 that provide superior tensile strength and excellent corrosion resistance in offshore, petrochemical areas as well as marine environments. They are in woven and welded format with standard apertures.
- Even at high temperatures of up to 315 o C (599 o F) it does not lose structural integrity.
- Intended to perform load-bearing and high pressure filtration.
- Outstanding resistance towards pitting, crevice corrosion and chloride exposure.
- Flat surface finish provides better flow in the key systems.
- Fine mesh screening and heavy industrial screening.
Engineering companies who have purchased through a reputed B2B Solution favour Super Duplex Steel Wire Mesh when they require permanency of strength, corrosive resistance and extended lifespan. It offers high stress, temperature variations and corrosive media reliability making it suitable in filtration units, marine equipment, refinery systems and offshore structural components.
Material & Grades Table – Super Duplex Steel Wire Mesh
Material Grade / Standard Size / Thickness / Diameter Extra Specification Weight (kg/m²) Super Duplex Steel UNS S32750 / ASTM A580 10–100 mesh, 0.15–1.20 mm wire High chloride corrosion resistance Approx. 1.5–9.0 Super Duplex Steel UNS S32760 / ASTM A580 10–100 mesh, 0.15–1.20 mm wire High strength and corrosion resistance Approx. 1.5–9.0 Super Duplex Steel UNS S32750 / EN 10088-3 20–200 mesh, 0.05–0.80 mm wire Fine filtration applications Approx. 0.8–6.5 Super Duplex Steel UNS S32760 / EN 10088-3 20–200 mesh, 0.05–0.80 mm wire Chemical and marine filtration Approx. 0.8–6.5 Duplex Steel UNS S32205 / ASTM A580 10–100 mesh, 0.15–1.20 mm wire General duplex corrosion resistance Approx. 1.5–9.0 Super Duplex Steel UNS S32550 10–80 mesh, 0.15–1.20 mm wire High-alloy corrosion-resistant mesh Approx. 1.5–9.0 Super Duplex Steel UNS S32950 10–80 mesh, 0.15–1.20 mm wire Severe chemical environments Approx. 1.5–9.0 Super Duplex Steel UNS S32707 10–80 mesh, 0.15–1.20 mm wire Hyper duplex applications Approx. 1.5–9.0
| Material | Grade / Standard | Size / Thickness / Diameter | Extra Specification | Weight (kg/m²) |
|---|---|---|---|---|
| Super Duplex Steel | UNS S32750 / ASTM A580 | 10–100 mesh, 0.15–1.20 mm wire | High chloride corrosion resistance | Approx. 1.5–9.0 |
| Super Duplex Steel | UNS S32760 / ASTM A580 | 10–100 mesh, 0.15–1.20 mm wire | High strength and corrosion resistance | Approx. 1.5–9.0 |
| Super Duplex Steel | UNS S32750 / EN 10088-3 | 20–200 mesh, 0.05–0.80 mm wire | Fine filtration applications | Approx. 0.8–6.5 |
| Super Duplex Steel | UNS S32760 / EN 10088-3 | 20–200 mesh, 0.05–0.80 mm wire | Chemical and marine filtration | Approx. 0.8–6.5 |
| Duplex Steel | UNS S32205 / ASTM A580 | 10–100 mesh, 0.15–1.20 mm wire | General duplex corrosion resistance | Approx. 1.5–9.0 |
| Super Duplex Steel | UNS S32550 | 10–80 mesh, 0.15–1.20 mm wire | High-alloy corrosion-resistant mesh | Approx. 1.5–9.0 |
| Super Duplex Steel | UNS S32950 | 10–80 mesh, 0.15–1.20 mm wire | Severe chemical environments | Approx. 1.5–9.0 |
| Super Duplex Steel | UNS S32707 | 10–80 mesh, 0.15–1.20 mm wire | Hyper duplex applications | Approx. 1.5–9.0 |
Key Features & Advantages
- Excellent resistance to pitting and crevice corrosion
- High resistance to chloride stress corrosion cracking
- Higher mechanical strength than conventional austenitic stainless steel
- Suitable for seawater and marine environments
- Excellent performance in demanding chemical applications
- Available in fine and coarse mesh configurations
- Long service life under severe operating conditions
- Excellent resistance to pitting and crevice corrosion
- High resistance to chloride stress corrosion cracking
- Higher mechanical strength than conventional austenitic stainless steel
- Suitable for seawater and marine environments
- Excellent performance in demanding chemical applications
- Available in fine and coarse mesh configurations
- Long service life under severe operating conditions
Chemical Composition
Representative Grade: Super Duplex Steel UNS S32750
Element Percentage (%) Chromium (Cr) 24.0–26.0 Nickel (Ni) 6.0–8.0 Molybdenum (Mo) 3.0–5.0 Nitrogen (N) 0.24–0.32 Carbon (C) 0.030 max Iron (Fe) Balance
Representative Grade: Super Duplex Steel UNS S32750
| Element | Percentage (%) |
| Chromium (Cr) | 24.0–26.0 |
| Nickel (Ni) | 6.0–8.0 |
| Molybdenum (Mo) | 3.0–5.0 |
| Nitrogen (N) | 0.24–0.32 |
| Carbon (C) | 0.030 max |
| Iron (Fe) | Balance |
Mechanical Properties
Property Value Tensile Strength 795 MPa min. Yield Strength 550 MPa min. Elongation 15% min. Hardness 310 HB max.
| Property | Value |
| Tensile Strength | 795 MPa min. |
| Yield Strength | 550 MPa min. |
| Elongation | 15% min. |
| Hardness | 310 HB max. |
Equivalent Grade
Standard Grade ASTM A240 / A580 – UNS S32750 UNS S32750 EN 1.4410 DIN X2CrNiMoN25-7-4
| Standard | Grade |
| ASTM | A240 / A580 – UNS S32750 |
| UNS | S32750 |
| EN | 1.4410 |
| DIN | X2CrNiMoN25-7-4 |
Type of Sub-products
Frequently Asked Questions
What materials are used to manufacture Super Duplex Steel Wire Mesh?
What are the applications of Super Duplex Steel Wire Mesh?
Which specifications are available for Super Duplex Steel Wire Mesh?
How can I select suitable Super Duplex Steel Wire Mesh?
Does Rajkrupa Metal Industries provide custom manufacturing?
How can I contact the supplier?
