U Bolts Supplier In Dubai | Astm A193 B7 Carbon Steel Fastener Industrial

Name: U Bolts Supplier In Dubai | Astm A193 B7 Carbon Steel Fastener Industrial
Brand: Delta Fitt Inc
Availability: InStock
Rating: 5 (16 reviews)

Specification Details
Size	1/4" (6mm)
Type	Bolt, Nut, Screw, Washer, Rivet, Threaded Rod, Studs, Coated, Custom Fasteners, Nails
Standard	Din, Iso, Jis, Gb, Is, Bs, Astm
Length	1" to 1.5" (25mm - 38mm)
Material	Monel, Inconel, Incoloy, Stainless Steel, Hastelloy, Nickel, Phosphor Bronze, Silicon Bronze

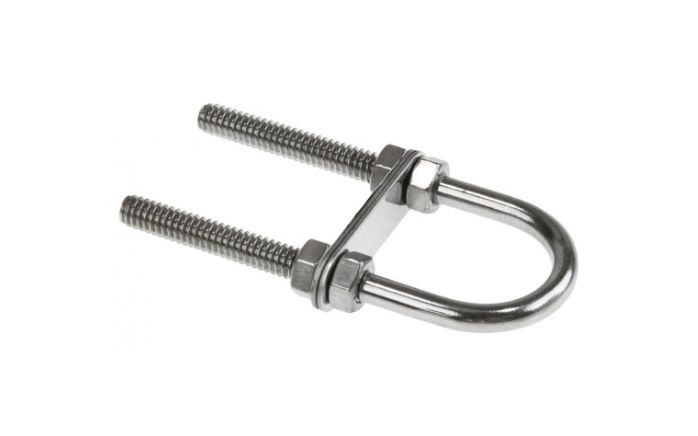

U Bolts Supplier in Dubai | Stainless Steel U Bolts ASTM F593 ASTM F594

Delta Fitt Inc. is known as a reliable supplier of U Bolts in Dubai, providing top-notch fastening solutions in industrial and structural applications. The U Bolts are specially designed fasteners that are shaped in the letter “U” and are broadly utilized in construction and engineering systems for the support of pipes, tubes, and round surfaces. These fasteners are very strong in providing grip strength, stability, and resistance to vibration in demanding applications. Bolts is also used in several other general industrial assembly and structural fastening applications as a secure and durable connection. There are different types of coatings, thread size specifications, and material grades of U Bolts available in the market to suit the requirements of the industries, including pipe, auto, marine, and fabrication.

U Bolts are produced to ASTM, DIN, ISO and ASME standards and are highly tensile, corrosion resistant, and offer a long service life in heavy-duty applications. They are typically distributed via a reliable b2b trading platform that caters to EPC companies, industrial customers, and engineering industries across the globe. B7 Stud Bolts are also popular in high-pressure piping and flange systems due to their superior mechanical properties and resistance to temperature changes. U Bolts are widely utilized in pipe support applications, automotive suspension systems, marine and offshore structures, industrial machinery, and other scenarios that require reliable clamping and load-bearing capabilities. It is also common to use Anchor Bolts for concrete foundations and structural anchoring applications due to the strength of their holding power and reliability.

Material & Grades Table – U Bolts

Material Grade / Standard Size / Thickness / Diameter Extra Specification Weight (kg/1000 pcs)
Stainless Steel SS 304 / ASTM F593 M6–M36 × 50–600 mm General-purpose corrosion-resistant U Bolt Approx. 20–2500
Stainless Steel SS 316 / ASTM F593 M6–M36 × 50–600 mm Marine and chemical applications Approx. 20–2500
Stainless Steel SS 316L M6–M36 × 50–600 mm Low-carbon corrosion-resistant construction Approx. 20–2500
Carbon Steel ASTM A307 Grade A M8–M36 × 75–600 mm General industrial pipe support Approx. 30–2800
Carbon Steel ASTM F1554 Grade 36 M10–M36 × 100–600 mm Structural and anchoring applications Approx. 50–3000
Alloy Steel ISO 898-1 Class 8.8 M8–M36 × 75–600 mm High-strength fastening applications Approx. 40–3000
Alloy Steel ASTM A193 Grade B7 M10–M36 × 100–600 mm High-temperature and industrial service Approx. 50–3000
Titanium Grade 5 / ASTM F467 M6–M24 × 50–400 mm Lightweight and corrosion-resistant Approx. 15–1200

Material	Grade / Standard	Size / Thickness / Diameter	Extra Specification	Weight (kg/1000 pcs)
Stainless Steel	SS 304 / ASTM F593	M6–M36 × 50–600 mm	General-purpose corrosion-resistant U Bolt	Approx. 20–2500
Stainless Steel	SS 316 / ASTM F593	M6–M36 × 50–600 mm	Marine and chemical applications	Approx. 20–2500
Stainless Steel	SS 316L	M6–M36 × 50–600 mm	Low-carbon corrosion-resistant construction	Approx. 20–2500
Carbon Steel	ASTM A307 Grade A	M8–M36 × 75–600 mm	General industrial pipe support	Approx. 30–2800
Carbon Steel	ASTM F1554 Grade 36	M10–M36 × 100–600 mm	Structural and anchoring applications	Approx. 50–3000
Alloy Steel	ISO 898-1 Class 8.8	M8–M36 × 75–600 mm	High-strength fastening applications	Approx. 40–3000
Alloy Steel	ASTM A193 Grade B7	M10–M36 × 100–600 mm	High-temperature and industrial service	Approx. 50–3000
Titanium	Grade 5 / ASTM F467	M6–M24 × 50–400 mm	Lightweight and corrosion-resistant	Approx. 15–1200

Key Features & Advantages

U-shaped design provides secure wrapping and clamping

Suitable for pipe, tube, cable, and structural support

Available in round, square, and customized configurations

Excellent dimensional accuracy and thread consistency

Stainless steel grades provide strong corrosion resistance

High-strength grades support demanding mechanical applications

Available with customized diameters, leg lengths, bends, coatings, and finishes

Chemical Composition

Representative Grade: Stainless Steel 316

Element Percentage (%)
Chromium (Cr) 16.0–18.0
Nickel (Ni) 10.0–14.0
Molybdenum (Mo) 2.0–3.0
Manganese (Mn) 2.00 max.
Carbon (C) 0.080 max.
Iron (Fe) Balance

Element	Percentage (%)
Chromium (Cr)	16.0–18.0
Nickel (Ni)	10.0–14.0
Molybdenum (Mo)	2.0–3.0
Manganese (Mn)	2.00 max.
Carbon (C)	0.080 max.
Iron (Fe)	Balance

Mechanical Properties

Property Value
Tensile Strength 515 MPa min.
Yield Strength 205 MPa min.
Elongation 40% min.
Hardness 95 HRB max.

Property	Value
Tensile Strength	515 MPa min.
Yield Strength	205 MPa min.
Elongation	40% min.
Hardness	95 HRB max.

Equivalent Grade

Standard Grade
ASTM F593 Type 316
UNS S31600
EN 1.4401
DIN X5CrNiMo17-12-2

Standard	Grade
ASTM	F593 Type 316
UNS	S31600
EN	1.4401
DIN	X5CrNiMo17-12-2

Type of Sub-products

Frequently Asked Questions

What are U-bolts used for?

What materials are U-bolts available in?

How do you choose the right U-bolt size?
